MODELS |

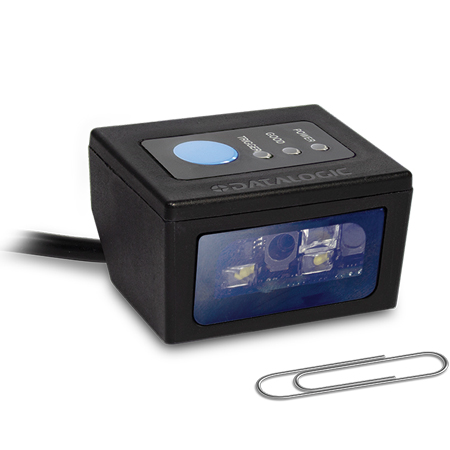

DSM0421 | DSM0400, 2D, WVGA, USB |

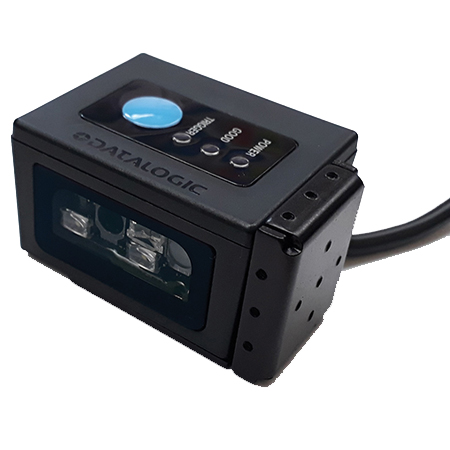

DSM0422-DL | DSM0400, 2D, MP-DL, USB |
DSM0452-DL | DSM0400, 2D, MP-DL, RS-232 |
DSM0492-DL | DSM0400, 2D, MP-DL, RJ-45 |
DSM0422-WA | DSM0400, 2D, MP-WA, USB |
DSM0452-WA | DSM0400, 2D, MP-WA, RS-232 |
DSM0492-WA | DSM0400, 2D, MP-WA, RJ-45 |
DECODING CAPABILITY |
1D / Linear Codes | All standard 1D codes including: UPC/EAN/JAN, P2 / P5 add-ons; Code 39; Italian Pharmacode 39; Code 128; C128 ISBT; I 2 of 5; Standard 2 of 5; Interleaved 2 of 5; Industrial 2of 5; Datalogic 2of5; IATA; Code 11; Codabar; ABC Codabar; EAN 128; Code 93; MSI/Plessey; RSS-14; BC412; Databar Limited; Databar Omnidirectional; Databar Expanded; IATA; Trioptic; Matrix 2/5; Telepen. Composite codes CC-A, CC-B and CC-C |
2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;Micro QR Code; QR Code |
Postal Codes | Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
Stacked Codes | EAN/JAN Composites; GS1 DataBar Composites; GS1;DataBar Expanded Stacked; GS1 DataBar Stacked;GS1 DataBar Stacked Omnidirectional; MacroPDF;MicroPDF417; PDF417; UPC A/E Composites |
ELECTRICAL |
Input Voltage | 5 VDC ± 5% |
Current: DSM0421 USB Connected | Operating (Typical): ≈ 214 mA** Standby/Idle (Typical): ≈ 57 mA* Low Power: ≈ 3.9 mA |
Current: DSM0422 / DSM0492 USB Connected | Operating (Typical): ≈ 214 mA** Standby/Idle (Typical): ≈ 55 mA* Low Power: ≈ 5 mA |
Current: DSM0452 / DSM0492 RS-232 Connected | Operating (Typical): ≈ 246 mA** Standby/Idle (Typical): ≈ 50 mA* Low Power: ≈ 9 mA |
**If “power” and “trigger” status LED are enabled add 30 mA * If “power” status LED is enabled add 15 mA |
ENVIRONMENTAL |
Ambient Light | 0 - 100,000 lux |
Humidity (Non-condensing) | 5 - 95% |
Drop Resistance | Withstands repeated drops from 3 ft onto a concrete surface. |
Particulate and Water Sealing | IP54 |
Temperature | Operating: -20 to 50°C / -4 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
INTERFACES |
Interfaces | USB: HID-KBD, COM, OEM& Composite (KBD & COM);RS-232 |
PHYSICAL CHARACTERISTICS |
Colors Available | Black |
Dimensions | 4.7 x 2.7 x 3.8 cm / 1.85 x 1.06 x 1.50 in |
Weight (with cable) | USB version - Approximately 131 g / 4.62 oz RS-232 version – Approximately 155 g / 5.47 oz RJ-45 version – Approximately 96 g / 3.39 oz |
READING PERFORMANCE |
Imager Sensor | WVGA: 752 x 480 pixels MP: 1280 x 960 pixels |
Light Source | Aiming: 650 nm VLD Illumination: White LEDs |
Field of View | DSM0421: 40°H x 26°V DSM04X2-DL: 42°H x 32°V DSM04X2-WA: 52°H x 40°V |
Reading Angle | Pitch: +/- 60°; Roll (Tilt): +/-180°; Skew (Yaw): +/- 60° |
Reading Indicators | Beeper (Adjustable volume); Good Read Feedback: Datalogic ‘Green Spot’ Technology; Good read top LED. |
Resolution (Maximum) | 1D Linear: 2.5 mils (DSM04X2) – 3.0 mil (DSM0421) Data Matrix: 6 mils (DSM04X2) - 7.5 mils (DSM0421) PDF417: 3 mils (DSM04X2) - 6.6 mils (DSM0421) |
Print Contrast (Minimum) | 25% |
Image Capture | Greyscale: 256; Graphic Formats: BMP, JPEG |
READING RANGES |
Typical Depth of Field | Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. |
1D/2D Codes: DSM0421 | 3 mils Code 39: 8.0 to 17.5 cm / 3.1 to 6.9 in 5 mils Code 39: 5.5 to 26.0 cm / 2.1 to 10.2 in 13 mils EAN-13: 4.5 to 42.0 cm / 1.8 to 16.5 in 20 mils Code 39: up to 59.0 cm / up to 23.2 in 15 mils Data Matrix: 3.5 to 26.5 cm / 1.4 to 10.4 in 10 mils PDF417: up to 20.0 cm / up to 7.9 in |
1D/2D Codes: DSM04X2-DL | 3 mils Code 39: 6.5 to 20.0 cm / 2.5 to 7.8 in 5 mils Code 39: 3.5 to 29.0 cm / 1.3 to 11.4 in 10 mils Data Matrix: 7.5 to 26.0 cm / 2.9 to 10.2 in 13 mils EAN-13: 4.5 to 42.0 cm / 1.7 to 16.5 in 15 mils Data Matrix: 5.5 to 32.0 cm / 2.1 to 12.5 in 20 mils Code 39: up to 60.0 cm / up to 23.6 in |
1D/2D Codes: DSM04X2-WA | 3 mils Code 39: 5.0 to 18.0 cm / 2.0 to 7.1 in 5 mils Code 39: 3.0 to 24.0 cm / 1.2 to 9.4 in 10 mils Data Matrix: 4.0 to 20.0 cm / 1.6 to 7.9 in 13 mils EAN-13: 3.5 to 37.0 cm / 1.4 to 14.6 in 15 mils Data Matrix: 3.0 to 25.0 cm / 1.2 to 9.8 in 20 mils Code 39: up to 60.0 cm / up to 23.6 in |
SAFETY & REGULATORY |
Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifcations. |
Environmental Compliance | Complies to China RoHS; Complies to EU RoHS |
Laser Classifcation | Caution Laser Radiation - Do not stare into beam IEC 60825 Class 2 |
Operating System Support | Windows; Linux, Android |
Tools | DESP Demonstration & Confguration Utility; Datalogic Aladdin |
WARRANTY |
|
Warranty | 3-Year Factory Warranty |
