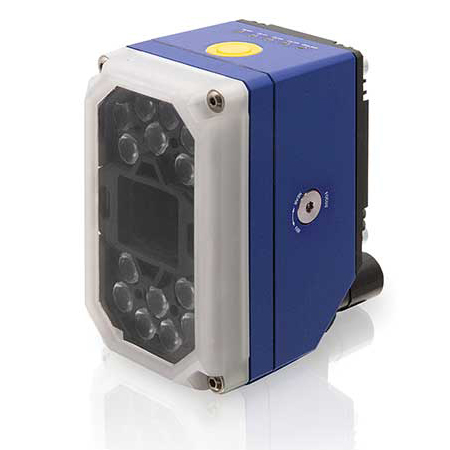

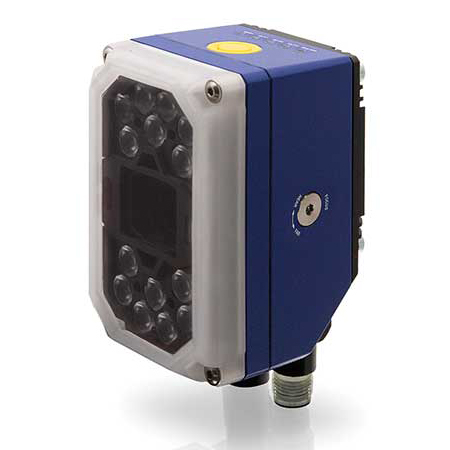

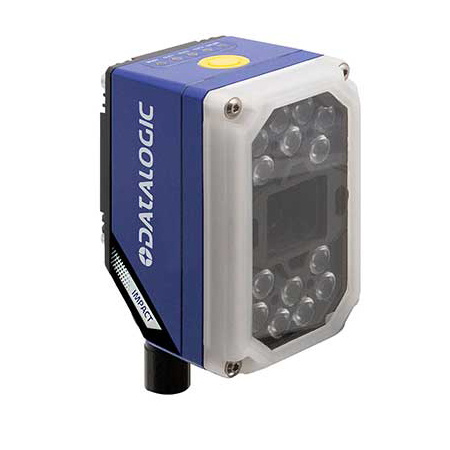

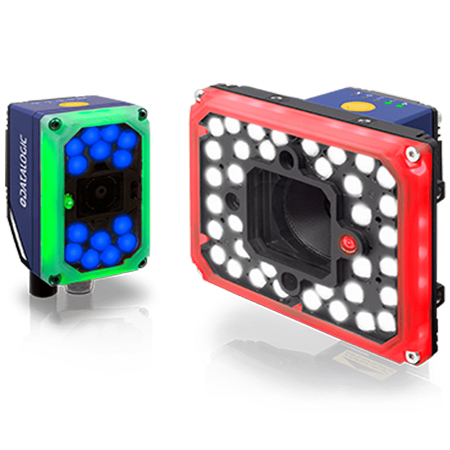

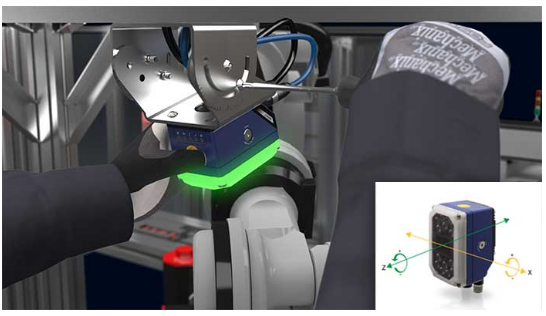

Datalogic推出的P2x系列,是一款終端智能相機,具有成熟的視覺系統,提供了無庸置疑的性能和靈活性。該款工業相機的高規格可應對苛刻的應用需求。緊湊型外殼和大視野范圍使其成為您機器人引導應用的理想相機。憑借著強大而功能豐富的內置光源,您可以將其用于檢測各種形狀、尺寸和顏色的生產線。強大的處理能力可在高生產的速度下使用。Datalogic得利捷P2x系列是一款功能非常強大的智能相機。
得利捷P2x系列智能相機產品選型表
CATEGORY ORDER N° DESCRIPTION
Cameras
937710021 P20M 100-000 ML
937710022 P20C 000-000 ML
937710023 P22M 700-000 ML
937710024 P22C 600-000 ML
Lenses
95A900010 LNP 601-040 ML 6MM FF4 1/3"
95A900011 LNP 603-040 ML 8MM FF4 1/3"
95A900012 LNP 606-040 ML 12.5MM FF4 1/3"
95A900013 LNP 608-040 ML 17.5MM FF4 1/3"
95A900014 LNP Micro Lens Kit M320/P2

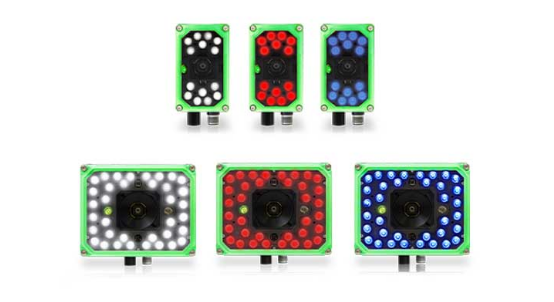

Illuminators
95A900023 LTP 110-600 SN14L 60D RED 625nm
95A900026 LTP 110-350 SN14L 35D RED 625nm
95A900025 LTP 110-602 SN14L 60D BLU 475nm
95A900028 LTP 110-352 SN14L 35D BLU 475nm
95A900024 LTP 110-601 SN14L 60D WHT white
95A900027 LTP 110-351 SN14L 35D WHT white
95A900031* LTP 112-600 SN36L 60D RED 625nm
95A900034* LTP 112-350 SN36L 35D RED 625nm
95A900033* LTP 112-602 SN36L 60D BLU 475nm
95A900036* LTP 112-352 SN36L 35D BLU 475nm
95A900032* LTP 112-601 SN36L 60D WHT white
95A900035* LTP 112-351 SN36L 35D WHT white
95A900038 Adapter LL ML LT 36L M320/P2
Covers
93ACC0271** Cover STD LT 14L M320/P2
93ACC0273 Cover Polarizer LT 14L M320/P2
93ACC0272 Cover STD LT 36L M320/P2
93ACC0274 Cover Polarizer LT 36L M320/P2
Filters
95A900018 Filter YAG Cut LT 14L M320/P2
95A900022 Filter YAG Cut LT 36L M320/P2
Add-on Licenses
95A900008 LICENSE, ENHANCED, SMART CAMERA
95A900009 LICENSE, PRO, SMART CAMERA
Brackets
93ACC0283 BK-32-010 SIDE FIX BRACKET M320/P2 BODY
93ACC0282** BK-32-000 STD FIX BRACKET M320/P2 BODY
Cables
93A050058 CAB-DS01-S M12-IP67 TO CBX 1M
93A050059 CAB-DS03-S M12-IP67 TO CBX 3M
93A050060 CAB-DS05-S M12-IP67 TO CBX 5M
93A051390 CAB-DS10-S M12-IP67 TO CBX 10M
93A050122 CAB-ETH-X-M01 M12-IP67 GETH-X CAB 1M
93A050123 CAB-ETH-X-M03 M12-IP67 GETH-X CAB 3M
93A050124 CAB-ETH-X-M05 M12-IP67 GETH-X CAB 5M
93A050140 CAB ETH-X-M10 M12-IP67 GETH-X CAB 10M
93A050128 CAB-ETH-X-RJ ADAPTER CAB GETH-X to RJ45
93A050129 CAB-ETH-X-D ADAPTER CAB GETH-X to ETH-D
