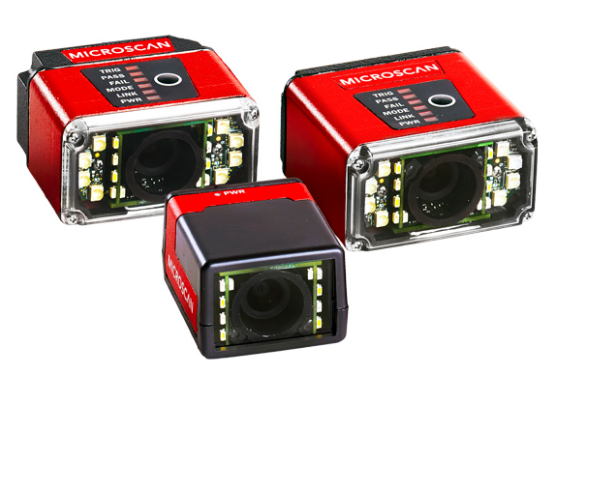

| ID-20 | ID-30 | ID-40 |
解碼 | Standard (High-Contrast 1D) Plus (High-Contrast 1D/2D) X-Mode (Poor or Damaged) | Standard (High-Contrast 1D) Plus (High-Contrast 1D/2D) X-Mode (Poor or Damaged + DPM) | Standard (High-Contrast 1D) Plus (High-Contrast 1D/2D) X-Mode (Poor or Damaged + DPM) |
---|
速度 | Standard (up to 10 FPS) | Standard (up to 10 FPS) or High-Speed (max. sensor FPS) | Standard (up to 10 FPS) or High-Speed (max. sensor FPS) |
---|
精度 | Standard- or High-Density | Standard- or High-Density | Standard- or High-Density |
---|
傳感器 (CMOS) | WVGA 0.34MP (752x480) Global Shutter, up to 60 FPS SXGA 1.2MP (1280x960) Global Shutter, up to 42 FPS QSXGA 5.0MP (2592x1944) Rolling Shutter, up to 5 FPS | WVGA 0.34MP (752x480) Global Shutter, up to 60 FPS SXGA 1.2MP (1280x960) Global Shutter, up to 42 FPS QSXGA 5.0MP (2592x1944) Rolling Shutter, up to 5 FPS | WVGA 0.34MP (752x480) Global Shutter, up to 60 FPS SXGA 1.2MP (1280x960) Global Shutter, up to 42 FPS QSXGA 5.0MP (2592x1944) Rolling Shutter, up to 5 FPS |
---|
曝光 | 50 - 100,000 Default: 2,500 μs | 50 - 100,000 Default: 2,500 μs | 50 - 100,000 Default: 2,500 μs |
---|
顏色 | QSXGA only | QSXGA only | QSXGA only |
---|
焦距 | Fixed (50-300 mm) | Fixed (50-300 mm) Liquid Lens Autofocus | Fixed (50-300 mm) Liquid Lens Autofocus |
---|
通信方式 | USB 2.0 High Speed, Ethernet over USB / HID | RS-232, USB 2.0 High Speed, Ethernet over USB / HID | RS-232, Ethernet TCP/IP, EtherNet/IP?, PROFINET?, Power over Ethernet (PoE) |
---|
連接器 | Micro-B USB | High-Density 15-Pin D-Sub | M12 12-Pin (Power), M12 8-Pin (Ethernet) |
---|
線纜 | N/A | 0.91 m | N/A |
---|
照明 | Inner LEDs: 4 White/4 Red Outer LEDs: N/A | Inner LEDs: 4 White/4 Red Outer LEDs: 8 High-Intensity White or Red (Optional) | Outer LEDs: 8 High-Intensity White or Red (Optional) |
---|
數(shù)字 I/O | N/A | 3 in/3 out Trigger Input: 5-28V rated (0.16mA @ 5VDC); New Master: 5 to 28V rated (0.16mA @ 5VDC); Default: 3.3V rated (0mA @ 3.3V) Outputs (1, 2, 3): 5V TTL-compa tible, can sink 10mA and source 10mA | 3 in/3 out, Optoisolated Trigger Input; New Master: Bi-directional, opto-isolated, 4.5-28V rated (10mA @ 28VDC) Outputs (1, 2, 3): Bi-directional, opto-isolated, 1-28V rated (ICE < 100mA at 24VDC, current limited by user) |
---|
電氣參數(shù) | 5 VDC ± 5 %, 350 mA at 5 VDC (typ.) | 5 VDC ± 5 %, 600 mA at 5 VDC (typ.) | 4.75-30 VDC, 200 mV p-p max ripple, 150 mA at 24 VDC (typ.) |
---|
尺寸 | 24 mm x 34 mm x 39 mm | 25 mm x 45 mm x 38 mm | 25 mm x 45 mm x 45 mm |
---|
重量 | 26 g | 46 g (包括線纜) | 68 g |
---|
外殼 | IP40,塑料 | IP54, 鋁 | IP65, 鋁 |
---|
指示 | Target Pattern, Good Read Green Flash | Target Pattern, Good Read Green Flash, Performance LEDs | Target Pattern, Good Read Green Flash, Performance LEDs |
---|
