當前位置: 首頁 > 核心產品 > 條碼掃描器,掃描槍 > 進口品牌 > 邁思肯Microscan > 邁思肯microscan LVS9510二維條碼檢測儀

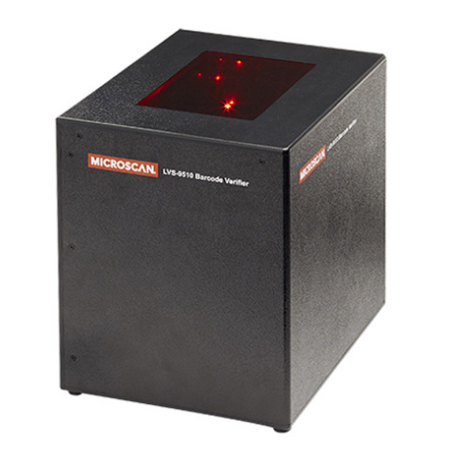

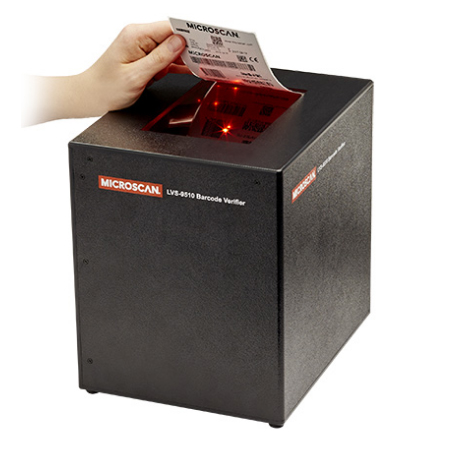

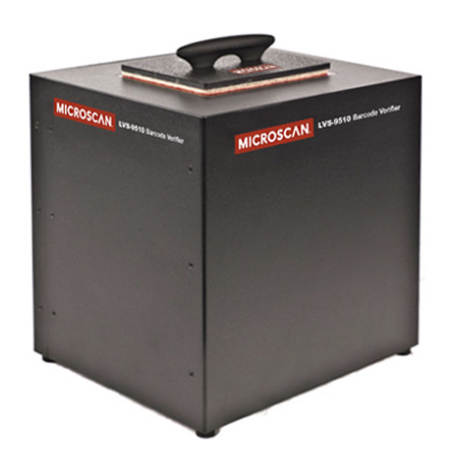

邁思肯microscan LVS9510二維條碼檢測儀
邁思肯microscan LVS9510二維條碼檢測儀
邁思肯microscan LVS9510二維條碼檢測儀
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載
  •       邁思肯LVS-9510桌面式條碼驗證器,主要用于按照ISO/IEC標準對條碼進行驗證。LVS-9510在全球ISO二維碼等級檢測儀產品中都是的,其操作簡單、無需更換設備就可以對線性和二維(2D)條碼進行驗證、能夠自動區分條碼類型、窄條碼寬度和光圈角度以對條碼進行評估而且能高亮標示出條碼中的錯誤點。

          LVS-9510 是根據 ISO/IEC , ANSI , GS1 和 UDI 標準的高性能離線條碼校驗器。

          LVS-9510 在 ISO 驗證領域是專業的,因?yàn)樗子谑褂茫軌蛟诓桓淖冊O(shè)備的情況下驗證線性( 1D )和二維( 2D )代碼。 系統自動確定評估代碼和識別所需的符號系統和光圈,并突出顯示故障點。

          LVS-9510 提供了 “ 拼接 ” 功能,可以對大于視野的條碼進行分級。


    邁思肯microscan LVS9510二維條碼檢測儀選型表:

    Calibration Card Part Numbers (Included with System)

    9510-5-1.75: EAN/UPC Test Card P/N 98-CAL020

    9510-5-3.0: EAN/UPC Test Card P/N 98-CAL020

    9510-5-4.0: EAN/UPC Test Card P/N 98-CAL020

    9510-5-4.5: EAN/UPC Test Card P/N 98-CAL020

    9510-5-6.250: GS1-128 Test Card P/N 98-CAL021

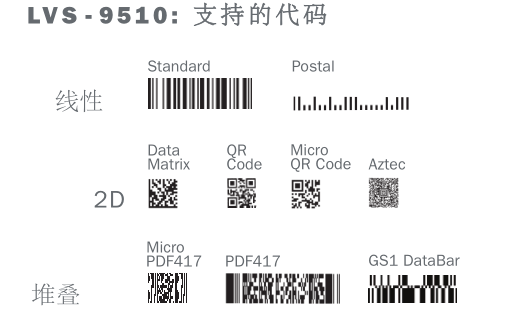

    邁思肯microscan LVS9510支持碼.png   邁思肯microscan LVS9510二維條碼檢測儀測試.png

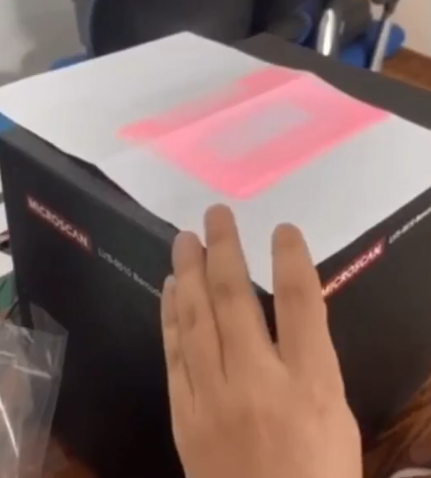

                                                                                                                     邁思肯microscan LVS9510二維條碼檢測儀測試視頻(點擊圖片或文字查看視頻)


    邁思肯microscan LVS9510二維條碼檢測儀特點:


    1) LVS-9510可以對全部九種ISO(ANSI)參數進行檢驗,而且還具備確定污損、不透明度和人工讀取驗證等功能。LVS-9510還可以對2D條碼進行驗證,并且可以根據相應條碼類型的規格報告所有參數。


    2) 分析結果采用顏色編碼,可以精確顯示條碼中出現問題的位置,以及需要對哪一部分條碼進行分析以確定解決問題的方法。在線幫助也可為分析提供輔助。


    3) 采用5百萬像素的高分辨率相機,可以實現條碼的高分辨率檢測,可以在兩千分之一英寸(.002"/.05 mm)的條碼高度上進行讀取和分析,遠超ISO所要求的十次掃描最低平均值。


    4)可以對視場內一個標簽上的多個條碼進行驗證,包括線性、矩陣(比如Data Matrix、QR和Aztec條碼)和堆疊線性(比如PDF 417、Micro PDF和Composite條碼)條碼的任意組合。


    邁思肯microscan LVS9510二維條碼檢測儀參數:


    支持的標準


    應用標準

    AIAG/DAMA/JAPIA/Odette,ALDI ,ISO/IEC TR 29158 (DPM Cat 0),DHL,FPMAJ,French CIP,GS1 General Specifications,HDMA Guidelines,Health Industry Barcode (HIBC),IFAH,Italian Pharmacode,Japan Codabar,Laetus Pharmacode,Laetus Standard,MIL-STD-130,Pharmacy Product Number (PPN),Automatic GS1 or ISO,GS1 (NTIN),Miniature Pharmacode ,

    Postal (EIB, USPS IMB/Code 128, POSTNET Japan Post) PZN-big, normal, small (German Pharmacode)

    GS1 US Certification

    Data Matrix for Healthcare,Data Matrix (ECC 200),EAN/UPC,EAN/UPC and extended codes ,EAN/UPC with CC,GS1 DataBar Omnidirectional,ITF-14 GS1 DataBar-14 with CC (formerly RSS-14 with CC),UCC/EAN with Supplementals,UCC/EAN-128, UCC/EAN-128 with CC

    ISO Conformance Standards

    ISO/IEC 15415, 15416, 15418 ISO/IEC 15426-1, 15426-2 All supported ISO/IEC Symbology Specifications

    外形尺寸

    高: 279.4 mm (11.0”) (Includes rubber feet on system base.)

    寬: 279.4 mm (11.0”)

    深: 228.6 mm (9.0”)

    掃描窗口: 120.65 mm x 171.45 mm (4.75" x 6.75")

    重量

    Unpackaged standalone weight: 2.72 kg (6.0 lbs.)

    Shipping weight (includes all items packaged in shipping box, such as power supply and cables): 5.89 kg (13.0 lbs.)

    最低電腦系統要求

    (電腦由客戶自行提供)

    Windows? 7 Professional, Windows? 8.1 Pro, or Windows? 10 Pro; Intel?Core? i3 or higher; 4 GB RAM; 800 x 600 Screen Resolution; One USB 2.0 port available per unit.

    支持的代碼


    Linear (1D) Symbologies

    Codabar

    Code 128, Code 39, Code 93

    DataBar

    DataBar Expanded and Limited

    DataBar Omnidirectional

    DataBar Stacked and Truncated

    EAN/JAN-13

    EAN/JAN-8

    Enterprise Intelligent Barcode (EIB)

    4-State (4SB)

    GS1-128

    Hanxin Code

    HIBC

    Interleaved 2 of 5 (ITF)

    ITF-14

    Japan Post

    MSI Plessey

    Pharmacode–Italian and Laetus

    PZN 7 and PZN 8

    UPC-A and UPC-E

    USPS-128

    USPS Intelligent Mail Barcode (4-State Customer Barcode)

    Two-Dimensional (2D) Symbologies

    Aztec

    DataBar with CC-A, CC-B, or CC-C

    EAN/JAN-13 with CC-A, CC-B, or CC-C

    EAN/JAN-8 with CC-A, CC-B, or CC-C

    ECC-200 (Data Matrix) including:

    ? EIB CMDM

    ? French CIP

    ? GS1 Data Matrix

    ? NTIN and PPN

    SAFETY CERTIFICATIONS DESIGNED FOR FCC,

    GS1-128 with CC-A, CC-B, or CC-C

    MaxiCode

    Micro QR Code

    MicroPDF417

    PDF417

    QR Code

    UPC-A with CC-A, CC-B, or CC-C

    UPC-E with CC-A, CC-B, or CC-C

    Note: CC = Composite Components Contact Microscan for a complete list of supported ECC-200 (Data Matrix) codes.

    光源

    Type: White LEDs; Red filter (660nm) Optional clear window available for purchase.

    電源

    Power Input: 12 VDC @ max. 2.5 A

    通訊

    USB 2.0 A plug to B plug cable 1.8 m (6 ft.)

    攝像頭

    Monochrome 5.0 megapixel

    環境

    Operating Temperature: 10° to 30° C (50° to 86° F) Storage Temperature: 0° to 40° C (32° to 104° F) Relative Humidity, Operating: 20% to 80% (non-condensing); Relative Humidity, Storage: 20% to 95% (non-condensing)

    21 CFR PART 11

    The LVS-9510 is certified by GS1 US and is 21 CFR Part 11 compliant-ready.


    邁思肯microscan LVS9510二維條碼檢測儀應用:


                           卷煙條盒,小包,瓦楞紙包裝箱,易拉罐,酒瓶,化妝品,藥品,電子產品

    邁思肯microscan LVS9510二維條碼檢測儀資料:


    LVS-9510 Verifier_CN.pdf
