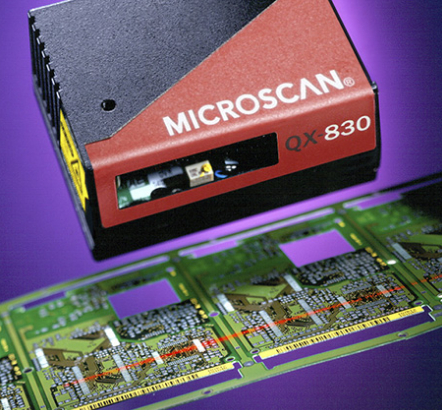

Microscan邁思肯QX-830工業(yè)用激光掃描器配件表 |
Part Number | Description |

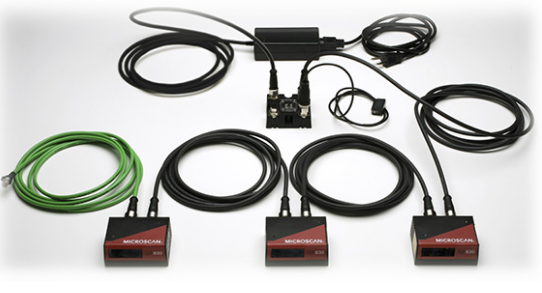

QX-1 and Cordsets |
98-000103-02 | QX-1 Interface Device |
61-000148-02 | QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 3M |
61-000162-02 | QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 1M |
61-000153-02 | QX Cordset, Host, Serial M12 12 pin Socket(Screw-down) to DB9 Socket, 1M |
61-000164-02 | QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M |
61-000152-02 | QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M |
61-000165-02 | QX Cordset, Host, Serial M12 12 pin Plug(Screw-down) to DB9 Socket, 3M |
61-000163-02 | QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 3M |
61-000160-02 | QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 1M |
61-000161-02 | QX Cordset, M12 12 pin Plug(Screw-down) to MS-5100, 3M |
61-000166-02 | QX Cordset, M12 12 Pin Plug(Screw-down) to Flying Leads, 3M |
61-000167-02 | QX Cordset, M12 12 Pin Socket(Screw-down) to Flying Leads, 3M |
FIS-0210-0001G | MS-Connect 210, Connectivity Box with Display |
FIS-0210-0002G | MS-Connect 210, Connectivity Box |
FIS-0210-0003G | MS-Connect 210, Connectivity Box with Display and Ethernet |
FIS-0210-0004G | MS-Connect 210, Connectivity Box with Ethernet |
98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 |
98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 |
98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 |
Power Supplies |
97-000012-01 | QX Power Supply, M12 12 pin Socket, 1.3m |
97-000012-04 | QX Power Supply, M12 12 pin Plug, 1.3m |
Mounting and Connectors |
98-500006-01 | Mounting Plate Kit, Flat, Custom Surfaces |
98-200026-02 | Right Angle Mirror Kit |
20-610024-01 | Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring) |
98-000016-01 | Mounting Arm/Adapter Kit, MS-820/QX-830/QX-870, 6 inch |
98-000037-01 | Extension Kit, All Scanners, 6 inch |
98-000054-01 | Kit, Mounting Stand Base Plate, Small |
Package Detector/Sensor |
99-000020-02 | QX Photo sensor, M12 4pin Plug, NPN, Dark On, 2m |
99-000020-01 | QX Photo sensor, M12 4pin Plug, NPN, Dark Off, 2m |
Software/Manuals |
37-000001-01 | TOOLS CD, User’s Manuals, ESP Software |
