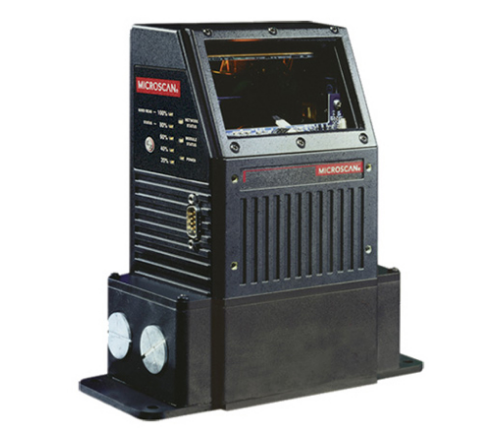

邁思肯MS-890工業(yè)用掃描器配件表 |
Part Number | Description |
FIS-0210-0001G | MS-Connect 210, Connectivity Box with Display |
FIS-0210-0002G | MS-Connect 210, Connectivity Box |
FIS-0210-0003G | MS-Connect 210, Connectivity Box with Display and Ethernet |
FIS-0210-0004G | MS-Connect 210, Connectivity Box with Ethernet |
98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890 |
98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 |
98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 |
61-000122-01 | Cable, To MS-Connect 210, Host RS-422/485 for Multidrop, 6 ft |
61-000123-01 | Cable, To MS-Connect 210, Host/AUX RS-232, for Daisy Chain 210 to 210, 6 ft |
FIS-0001-0030G | IB-3PC Keyboard Wedge/Interface Box |
98-000039-02 | Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer |
98-000040-02 | IB-150 Interface and reader cable, 6 ft |
98-000051-01 | USB Conversion Kit, IC-3USB |
61-000034-02 | Cable, Comm/Serial , 25pin Socket to 9pin Socket, 6 ft |
61-100029-03 | Cable, Connects IB-150 to IB-150, 1 ft , Daisy Chain |
61-000010-02 | Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft |
98-000011-01 | Glass Window Replacement Kit |
98-000011-02 | Plastic Window Replacement Kit |
61-000154-01 | Daisy Chain/Comm Adapter |
Wiring Box |
99-420003-04 | IB-890 Wiring Box (use w/FIS-0890-0002G) |
98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM |
98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM |
98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM |
12-000130-01 | CGB’s (sealed strain relief wire clamp) |
Power Supply |
97-100004-15 | Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332) |
Mounting and Connectors |
98-000017-01 | Mounting Arm/Adapter Kit, IB-890/FIS-0880-0002, 6 inch |
98-000018-01 | Mounting Arm/Adapter kit, MS-890, 6 inch |
98-000046-01 | Kit, Base Plate |
98-200037-01 | Standard Flat Mounting Plate Kit, MS-890, Custom Surfaces |
20-610024-01 | Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring) |
20-610020-01 | Power Connector, 3-pin Socket (screw terminal and field wireable) (for self wiring) |
Package Detector/Sensor |
99-000017-01 | Photo Sensor, Visible, NPN, DARK ON |
99-000017-02 | Photo Sensor, Visible, NPN, LIGHT ON |
99-000004-01 | Package Detector, Standard Diffuse, 120 inch Range, 4-pin Plug |
99-000004-02 | Package Detector, Standard Diffuse, 120 inch Range, Unterminated |
Software/Manuals |
37-000001-01 | TOOLS CD, User’s Manuals, ESP Software |
