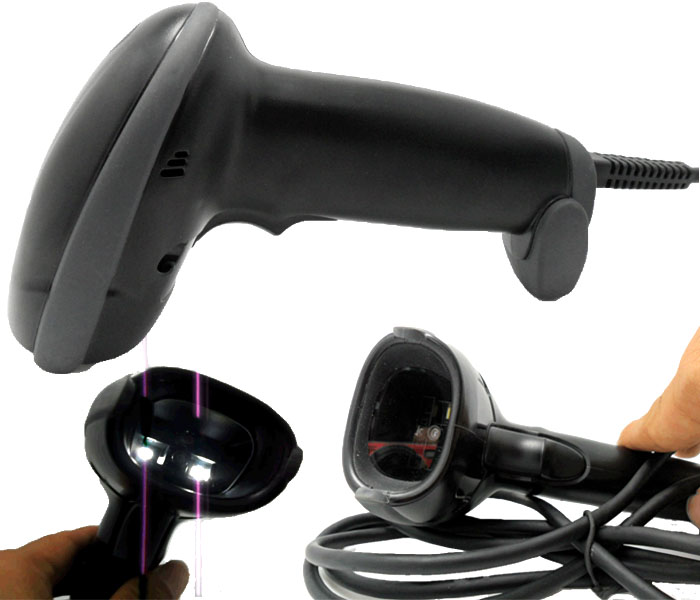

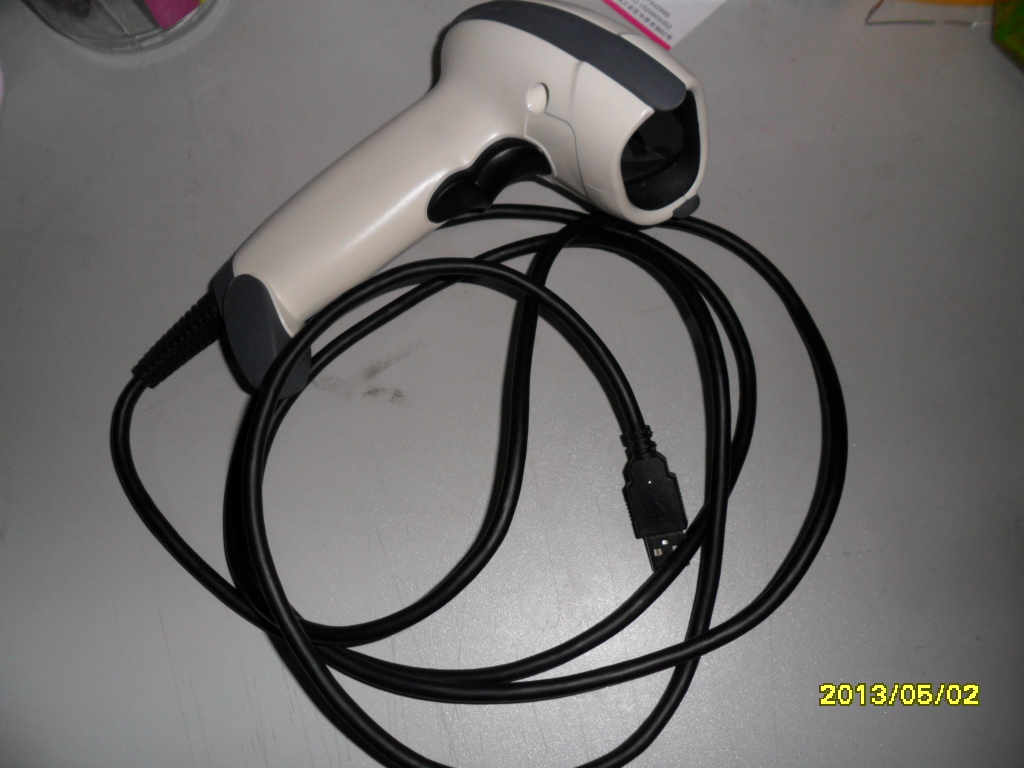

IVYSUN二維條碼掃描槍DS6501規格參數表 (Spec Chart)
物理參數 Physical Characteristics
外觀尺寸
Dimensions 16.8 cm H x 10.2cm L x 7.1 cm W
重量 Weight (w/o cable) 170g
輸入電源 Power 5 VDC ± 10% @ 450 mA
性能參數 Performance Characteristics
光源 瞄準光點 Aimer: 617 nm LED
Light Source 照明 Illumination: 625 nm LEDs
視場
Field of View 39° (H) x 25° (V)
Roll 0 - 360°
Pitch ± 65° or greater
Yaw ± 60° or greater
打印對比度 不低于25%
Print Contrast 25% minimum reflective difference
讀碼能力范圍 Symbology Decode Capability
1D UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 FullASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBarvariants, Korean 3 of 5, ISBT Concat
2D PDF417, MicroPDF417, Composite Codes, TLC-39,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances Up to 25 in. / 63.5 cm per second
接口支持Interfaces Supported
USB: HID Keyboard (default mode),COM Port Emulation
RS232: Standard
Minimum Resolution -SR: Code 39 4.8mil; UPC 60% 5 mil; PDF417 5 mil,Datamatrix 7.5 mil
-HD: Code 39 3 mil; UPC 60% 5 mil; PDF417 4 mil,Datamatrix 4.8 mil
電源 標準232版本提供電源
Power Supplies Power supplies are available for applications that do not supply power over the host cable
安規及認證 REGULATORY
電氣安全 UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed,
Electrical Safety EN60950-1/IEC60950-1 2nd ed.
LED Safety IEC/EN60825-1:2001, IEC/EN62471:2006
EMI/RFI FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024
Environmental Compliant with RoHS directive 2002/95/EEC
質量保證 WARRANTY
在正常使用條件下,DS-6501的質保期是1年,具體的保修條款 和聲明內容,請向艾韋迅業務員索取。
用戶環境 User Environment
工作溫度
Operating Temp. 0° C to 40° C
存儲溫度
Storage Temp. -40° C to 70° C
濕度
Humidity 5% to 95%, non-condensing
抗摔性 承受多次1.8m高度跌落到混凝土地面
Drop Spec Withstands multiple 6 ft. drops to concrete
環境光免疫 室內照明1600 Lux 太陽光 86000 Lux
Ambient Light Immune to normal indoor lighting up to 1600 Lux.
Immunity Immune to sunlight up to 86,000 Lux.
附件 Accessories
免手持模式 暫無
Hands-Free Options TBD
