支持的 標準 目標 代碼 | 應用標準 | AIAG/DAMA/JAPIA/Odette |
---|
ALDI |
ISO/IEC TR 29158 |
DHL |
FPMAJ |
French CIP |
GS1 General Specifications |
HDMA Guidelines |
Health Industry Barcode (HIBC) |
IFAH |
ISO/IEC 15415/15416 |
Italian Pharmacode |
Japan Codabar |
Laetus Miniature Pharmacode |
Laetus Pharmacode |
Laetus Standard |
MIL-STD-130N Change 1 |
Pharmacy Product Number (PPN) |
Automatic GS1 or ISO |
GS1 (NTIN) |
Miniature Pharmacode |
Postal (EIB, USPS IMB/Code 128、 POSTNET、 Japan Post) |
PZN-big、 normal、 small (German Pharmacode) |
GS1 美國認證 | Data Matrix for Healthcare |
---|
Data Matrix (ECC 200) |
EAN/UPC |
EAN/UPC and Extended Codes |
EAN/UPC with CC |
GS1 DataBar Omnidirectional |
ITF-14 |
GS1 DataBar-14 with CC (舊RSS-14 with CC) |
UCC/EAN with Supplementals |
UCC/EAN-128 |
UCC/EAN-128 with CC |
ISO標準 | ISO/IEC 15415、 15416、 15418 |
---|
ISO/IEC 15426-1, 15426-2 |
ISO/IEC TR29158(僅限支持DPM機型)/AIM DPM-1-2006 |
支持全部ISO/IEC符號體系規范 |

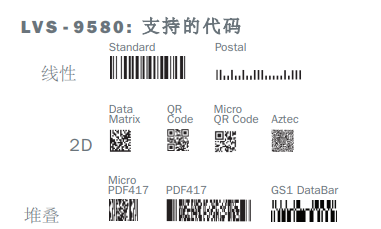

條形碼 (1D代碼) | Codabar |
---|
Code 128、 Code 39、 Code 93 |
GS1 DataBar Expanded and Limited |
DataBar |
DataBar Expanded and Limited |
DataBar Omnidirectional |
DataBar Stacked and Truncated |
EAN/JAN-13 |
EAN/JAN-8 |
Enterprise Intelligent Barcode (EIB) 4-State (4SB) |
French CIP |
GS1-128 |
Hanxin Code |
HIBC |
Interleaved 2 of 5 (ITF) |
ITF-14 |
Japan Post |
MaxiCode |
MSI Plessey |
Pharmacode-Italian and Laetus |
PZN 7 and PZN 8 |
UPC-A and UPC-E |
USPS-128 |
USPS Intelligent Mail Barcode (4-State Barcode) |
二維碼 (2D代碼) * | Aztec Code |
---|
DataBar (CC-A、CC-B或CC-C) |
EAN/JAN-13 (CC-A、CC-B或CC-C) |
EAN/JAN-8 (CC-A、CC-B或CC-C) |
ECC-200 (Data Matrix) |
Enterprise Intelligent Barcode (EIB) Complex Mail Data Marks (CMDM) |
GS1-128 (CC-A、CC-B或CC-C) |
Micro QR Code |
MicroPDF417 |
PDF417 |
QR Code |
UPC-A(CC-A、CC-B或CC-C) |
UPC-E(CC-A、CC-B或CC-C) |
PC最低要求 (用戶使用的PC) | ? Windows? 7 Pro SP1、Windows?10 Pro ? Intel?Core?i3處理器或性能同等品 ? RAM : 4GB ? 分辨率:800×600 ? USB 2.0端口×1 |
---|
視野 | 標準型(9580-C-3) | 縱:76.19mm 橫:57.15mm |
---|
DPM(9580-DPM) | 44mm×44mm |
---|
HD(9580-DPM-HD) | 33mm×30mm |
---|
讀取最 小單元 尺寸 | 標準型(9580-C-3) DPM(9580-DPM) | 條形碼(1D代碼):0.10mm 二維碼(2D代碼):0.15mm |
---|
HD(9580-DPM-HD) | 二維碼(2D代碼):0.05mm |
---|
相機 | 500萬像素?cái)z像頭 |
---|
攝像距離:接觸 |

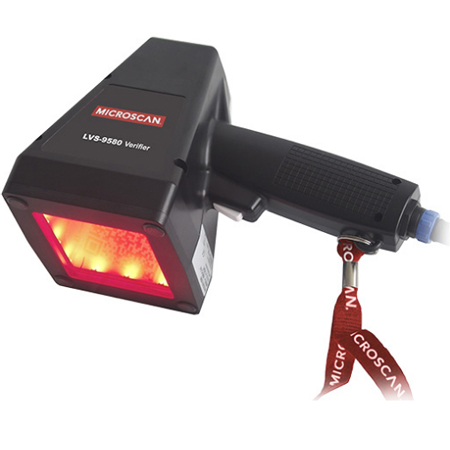

照明 | 紅色穹頂(660nm) |
---|
環境 規格 | 環境溫度范圍 | 工作時:4~46℃、保存時:-20~60℃ |
---|
環境濕度范圍 | 工作時:20~80%(無結冰、無結露)、保存時:20~95%(無結冰、無結露) |
---|
接口 | USB 2.0 A/MINI-B電纜:2.0m |
---|
電源 | USB電源:DC5V(400mA時) |
---|
重量 | 僅本體 | 約0.64kg |
---|
包裝重量 | 約1.81kg(包裝含電纜、手冊等所有附件) |
---|
外形尺寸 | 215.9mm(H)×139.7mm(D)×120.6mm(W) |
---|
調節用卡(主機附帶) | 9580-C-3附帶 : EAN/UPC Calibrated Conformance Standard Test Card 9580-DPM附帶 : EAN/UPC Calibrated Conformance Standard Test Card 9580-DPM-HD附帶 : Data Matrix Calibrated Conformance Standard Test Card |
---|
適用安全標準 | FCC、 CE、 UL |
---|
